Introducing the New UNO6 GM: Enhanced Precision and Robust Design

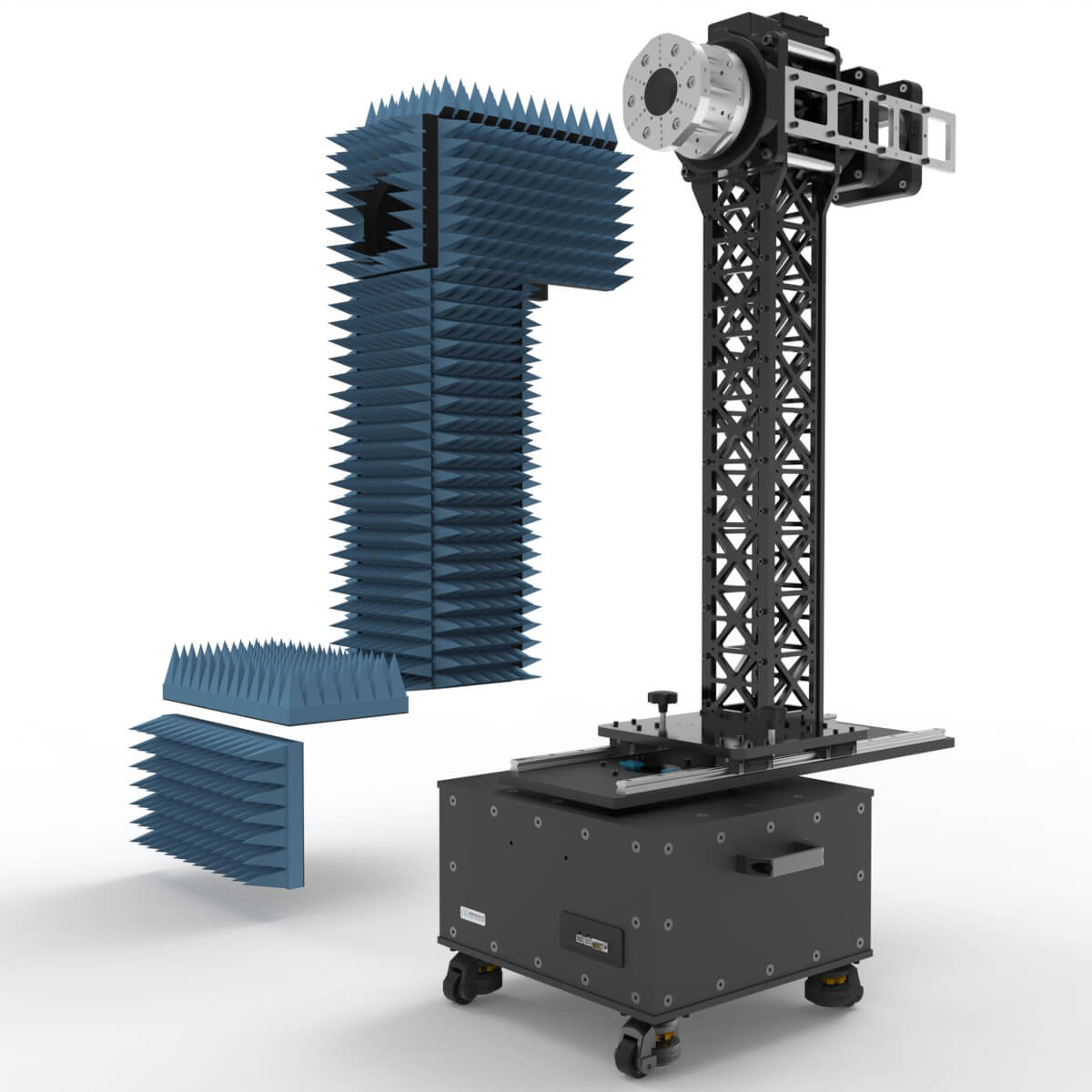

We’re excited to introduce the new UNO6 GM (Grid Mast), a robust high-precision positioner designed for demanding antenna testing applications. Built with a sturdy aluminum grid mast construction, the UNO6 GM offers enhanced support for antennas up to 25 kg (55 lb) and 120 cm (4 ft.) in diameter, ensuring stability and reliability in a variety of testing environments.
Designed for Performance
The UNO6 GM features a reinforced azimuth base for increased structural integrity, allowing it to handle high loads with ease. The grid mast roll head incorporates a precision roll motor mechanism and a 100 mm through-hole, providing ample space for cable management, rotary joints, and slip rings. Its aluminum offset block ensures flexible mounting and alignment options, making integration smoother than ever.
For applications requiring close-by frequency extenders, the UNO6 GM includes a dedicated rear bracket system, ensuring a short, low-loss connection from the antenna to the extender.
A unique bearing cassette surrounds the frequency extender, allowing it to rotate freely along with the roll head. This eliminates the need for delicate and costly waveguide rotary joints, significantly improving both reliability and cost efficiency.Â
Designed for Walk-In Chambers and Large Antenna Arrays

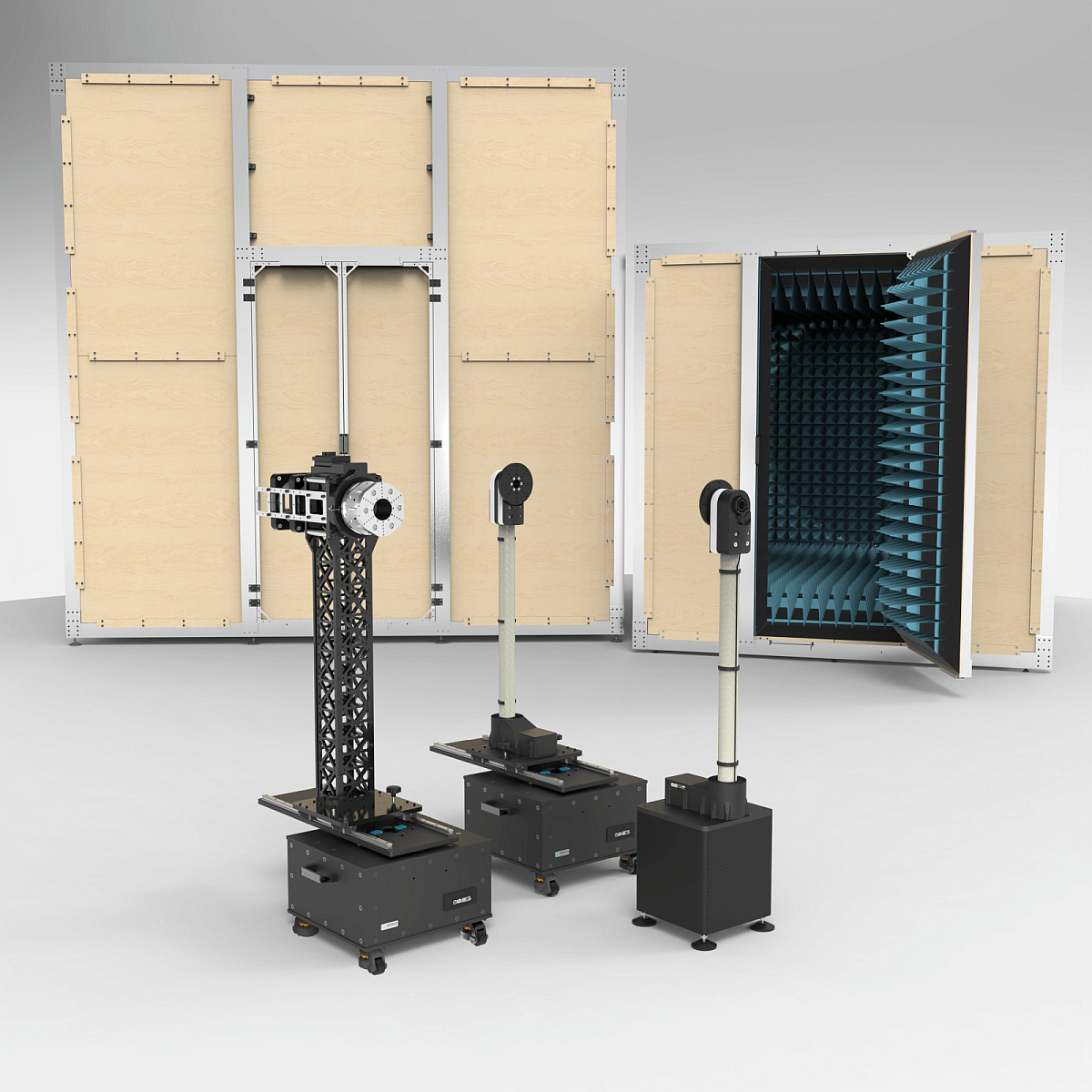

Constructed to excel in walk-in chambers like the AC1224, the UNO6 GM’s spacious clearance makes it ideal for testing large antenna arrays. Its rugged design ensures consistent performance under high loads, making it a trusted solution for high-end antenna development.
Complete Testing Packages for Different Applications
The UNO6 GM is available in two comprehensive packages to suit different testing needs:
Standard UNO6 GM Package
-
- Smart controller
- Cables & power supply
- Absorber kit
- Python reference code for far-field measurements
UNO6 NF-FF GM Package (for full spherical near-field scanning)
-
- RTOS real-time controller
- Cables & power supply
- Absorber kit
- Full Software Suite for spherical near-field scanning and near-field to far-field (NF-FF) conversions
Advanced Spherical Measurement Capabilities
For users requiring spherical theta-phi and polarization measurements, the UNO6 GM Spherical Kit includes an additional UNO6 roll mast.
With the launch of the UNO6 GM, we continue to push the boundaries of cost-efficient positioning systems without lowering accuracy and durability.
For more details on the UNO6 GM and its configurations, get in touch with our team today!
